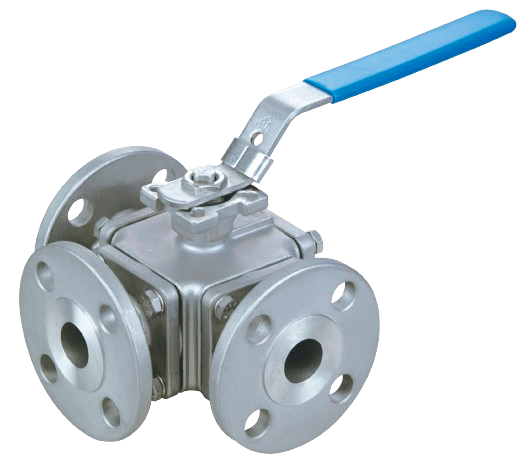

3 WAY BALL VALVE
Technical Data:
| DESIGN STD | BS 5351 |
|---|---|
| TESTING STD | BS 6755,API 598 |
| END | SCREWED, SOCKET AND FLANGED |
| MOC | CI, WCB, CF8 OR SS 304, CF8M OR SS316 etc |
| RATING | 150#, 300# |
| SIZE RANGE | 1/2” to 12” |
| Flange to Flange STD | ASME B16.10 for flanged |
| Flange Dimension Std | ASME B16.10, BS 10 T/F, T/E |
| Thread and Socket Std | BSP, NPT (thread), ANSI (socket) |
| Category : | Uncategorized |
Description
Abcovalves Floating Ball Multiport 3 Way Ball Valve and 4 way ball valves having Ports available as L Port and T Port Full Bore in ASME Class 150 and 300 Flanged End Connection in size range of 15 mm to 300 mm in Carbon Steel, Stainless Steel, Duplex Steel Material and other alloys. Multiport Ball Valve is also available in Fire Safe Design with ISO 5211 Actuator Mounting Base option. 3 way ball valves Flanged Ends can be operated by Manual Lever, Gear Unit, Pneumatic Actuator and Electrical Actuator.
