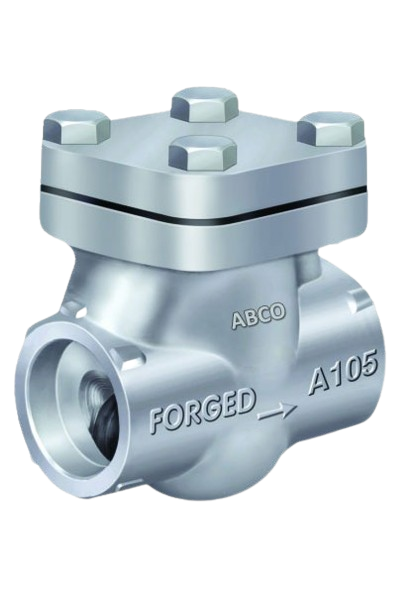

FORGED CHECK VALVE
Product Details:
| Application | Non Return Flow |
|---|---|
| Features / Benefit | Lift Type Design Renewable Seat Rings & Integral Seat Rings |
| Ansi Class / Rating | 800#, 1500# , 2500# |
| Design Standard | BS 5352 |
| Testing Standard | ISO 5208, API 598 |
| Size | 15 mm to 50 mm |
| Materials | Body : A105, F11, F22, F51, LF2, F304, F304L, F316, F316L Trim : 13 % Cr, Stellite etc |
| Ends | Screwed End, Socket Weld End, Butt Weld End |
| Operation | Auto |
| Category : | Uncategorized |
Description
Abcovalves is a pioneer in the market for forged check valves. Warren offers a Forged Swing & Piston check valve designs. Manufacturing capabilities include ¼”-2”, ANSI 150#-1500#. Materials of construction include Carbon Steel, Stainless Steel, Alloy 20, and other exotic materials.
Testing Pressure
| TESTING | HYDRAULIC | PNEUMATIC |
|---|---|---|
| 150#, 300#, | ||
| BODY | 425 PSIG 1125 PSIG | - |
| BACK SEAT | 315 PSIG 825 PSIG | - |
| SEAT | 315PSIG 825 PSIG | 80 PSIG |
