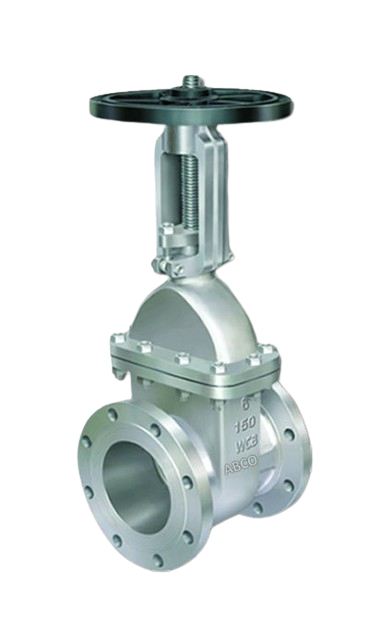

GATE VALVE 150#, 300#, 600#
Technical Data:
| Manufacturing Std : | API 600 |
|---|---|
| Face to Face, End to End : | ASME B16.10 |
| End Connection : | Flanged Ends to ASME B16.5, RF Butt Weld Ends to ASME B16.25 |
| Inspection and Testing Std : | API 598 TEST PRESSURE |
| Category : | Uncategorized |
Description
Forged Carbon Steel / Forged Stainless Steel / Cast Carbon Steel / Cast Alloy Steel / Cast Stainless Steel / Cast Iron SALIENT FEATURES Body : Robustly designed to withstand stringent duty condition, Smoothly configurated to reduce Turbulance. Long and Accurate Guides : Optionally toleranced for free movement of wedge in flow path and retaining leak tightness even in fluctuating line condition. SuperFinish Seating Faces : High accuracy and superfinish by lapping of body ring and wedge seat faces, guarantee zero leak and reduce operational torque. Deep Stuffing Box : Facilitates extra number of gland packings and ensures pressure tightness and long packing life, can be repacked while valve is back seated. Spindle-Wedge : T-SLOT is housed in the wedge in such a manner to improve transmission efficiency of torque from spindle to wedge and ensure leak tightness. the solid flexible wedges fitted in Gate Valves are Cast Steel having 13% Chrome Welded seat facings, machined with exterme accuracy and finaly ground and lapped to a mirror finish to secure no-leak condition and to minimize the risk of galling. Quality : Committed with dedicarion. Inspection : Third Party Inspection by Lloyds, Bureau Veritas, ABS,UHDE,Bax Council,ElL,PDIL and IBR Etc. are being regularly Carried o
Testing Pressure
| TESTING | HYDRAULIC | PNEUMATIC |
|---|---|---|
| 150#, 300#, 600# | ||
| BODY | 450 PSIG, 1125 PSIG, 2225 PSIG | - |
| BACK SEAT | 315PSIG, 825 PSIG, 1640 PSIG | - |
| SEAT | 315PSIG, 825 PSIG, 1640 PSIG | 80 PSIG |
Capacity
| Operator | Size Range |
|---|---|
| Handwheel | 2” – 10” – Class 150, 300, 600 |
| 2” – 4” – Class 900 & 1500 | |
| Gear Operator | 12” & Above – Class 150, 300, 600 |
| 6” & Above – Class 900,1500 |
Material
| STRUCTURE | End Connection | Flanged End Raised Face, Butt Weld End, RTJ,. ETC |
| Operation | Hand wheel, Gear Operator, Electrical Actuator, Pneumatic, Hydraulic | |
| MATERIAL | Shell | WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastelloy, Inconel, Duplex Stainless Steel |
| Trim | 13% Cr Steel, 304 , 304L, 316, 316L, 321, 347, F51, Monel |
