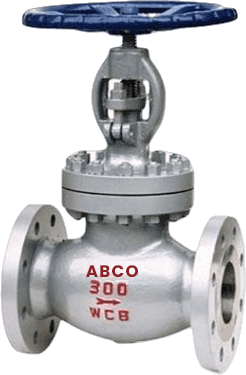

GLOBE VALVE 150#, 300#, 600#
Technical Data:
| Manufacturing Std : | BS 1873 |
|---|---|
| Face to Face, End to End : | ASME B16.10 |
| End Connection : | Flanged Ends to ASME B16.5, RF Butt Weld Ends to ASME B16.25 |
| Inspection and Testing Std : | BS 6755 (Part-1) |
| Category : | Uncategorized |
Description
Globe valves are used for shut-off or regulating of a flow in a pipeline, and exist in different style :
Straight pattern: Most common type Y-Type: For maximum flow with low pressure-drop Our range covers both style, but we will mention here the most common types straight patterns.
Forged steel Globe valves, ANSI 800, 1500, sizes ½” to 2” Bolted Bonnet, connection NPT, SW, or Flanged, in materials A105, LF2, 304L, 316L, F11, F22, F91. Forged steel Globe valves, ANSI 1500, 2500, 4500, sizes ½” to 12” Bonnetless, connections NPT, SW or BW, in material A105, LF2, 304L, 316L, F11, F22, F91. Cast steel Globe valves ANSI 150, 300, 600, 1500, 2500, sizes 2” to 24” Bolted Bonnet connection BW or Flanged, in materials A216WCB, WC6, WC9, CI2A, CF8M. Cast steel valves ANSI 600, 900, 1500, 2500, sizes 2” to 16” Pressure Seal, connection BW or Flanged, in materials A216WCB, WC6, WC9, CI2A, CF8M. All accessories and equipment available:
Electric or pneumatic actuators Limit switches Locking devices Position indicators Regulating plugs
Testing Pressure
| TESTING | HYDRAULIC | PNEUMATIC |
|---|---|---|
| 150#, 300#, 600# | ||
| BODY | 450 PSIG, 1125 PSIG, 2225 PSIG | - |
| BACK SEAT | 315PSIG 825 PSIG 1600 PSIG | - |
| SEAT | 315PSIG 825 PSIG 1640 PSIG | 80 PSIG |
Capacity
| Operator | Size Range |
|---|---|
| Handwheel | 2” – 10” – Class 150, 300, 600 |
| 2” – 4” – Class 900 & 1500 | |
| Gear Operator | 12” & Above – Class 150, 300, 600 |
| 6” & Above – Class 900,1500 |
Material
| STRUCTURE | End Connection | Flanged End Raised Face, Butt Weld End, RTJ,. ETC |
| Operation | Hand wheel, Gear Operator, Electrical Actuator, Pneumatic, Hydraulic | |
| MATERIAL | Shell | WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastelloy, Inconel, Duplex Stainless Steel |
| Trim | 13% Cr Steel, 304 , 304L, 316, 316L, 321, 347, F51, Monel |
