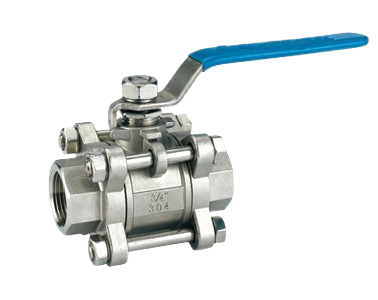

SCREWEND BALL VALVE (1PC, 2PC, 3PC)
Technical Data:
| DESIGN STD | BS 5351 |
|---|---|
| TESTING STD | BS 6755,API 598 |
| END | SCREWED, SOCKET |
| MOC | CI, WCB, CF8 OR SS 304, CF8M OR SS316 etc |
| RATING | 150#,300#,800# |
| SIZE RANGE | 1/2” to 3″ |
| Flange to Flange STD | ASME B16.10 for flanged |
| Flange Dimension Std | ASME B16.10, BS 10 T/F, T/E |
| Thread and Socket Std | BSP, NPT (thread), ANSI (socket) |
| Category : | Uncategorized |
Description
Screwed End Ball Valve Single Piece (CF8-50 mm) is an end ball valve used for controlling flow rate of liquid or gas. The single piece design makes it easy to install and maintain. This product has been tested and certified according to ISO 9001:2008 quality management system requirements.
